| Basic Parameter |
| Vehicle Name |

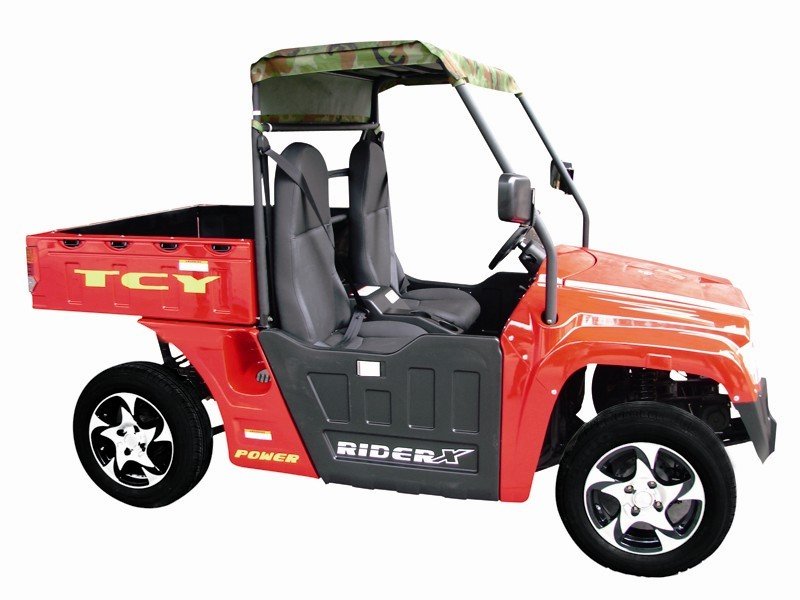

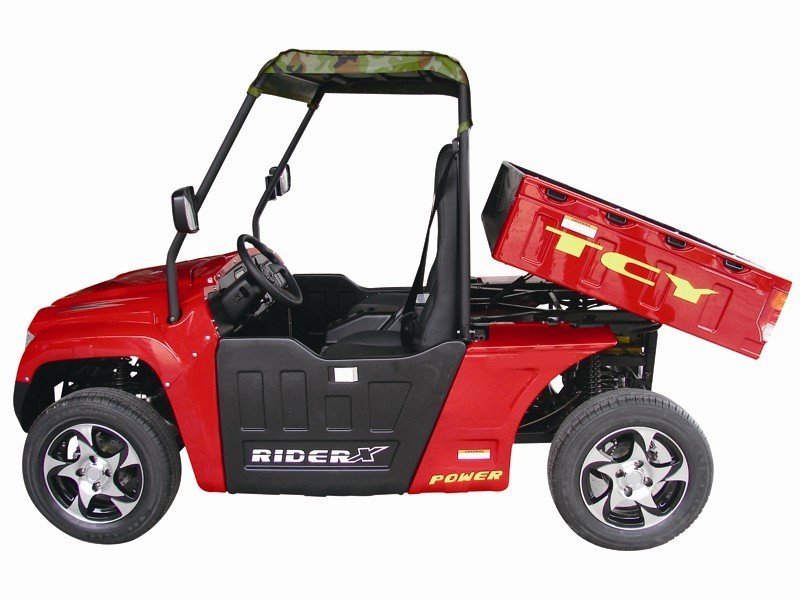

BH500UTV |
| Manufacture |
Chongqing Baohua Motorcycle Co., Ltd. |
| Type |
UTV |
| Power |
500cc Gasoline Engine |
| Transmission Type |
CVT Automatic |
| Max. Speed(Km/h) |
85Km/h |
| Dimension |
| L x W x H(mm) |
3020mm x 1460mm x 1800mm |
| Wheelbase(mm) |
1960mm |
| Track Front(mm) |
1420mm |
| Track Rear(mm) |
1430mm |
| Ground Clearance(mm)： |
240mm |
| Seat Height |
460mm |
| Fuel Capatity |
34L |
| Net Weight(Kg)： |
520Kg |
| Engine |
| Engine Type |
500cc Water cooled, 4-valve,4-stroke, 1-cylinder |
| Displacement(cc)： |
493cc |
| Valve Type |
DOHC |
| Bore x Stroke(mm)： |
87.5mm x 82mm |
| Compression Ratio |
10.2：1 |
| Max. Power(kw)： |
24.0kw/6500rpm |
| Max Torque(N·m)： |
38.8N.m/5500rpm |
| Fuel Feeding |
Carburetor |
| Ignition |
CDI |
| Starting Type |
Electric |
| Drive Train |
Axle |
| Transmission |
P-L-H-N-R |
| Fuel Type |
NO.93 |
| Chassis |
| Drive Type |
Centrally-mounted,four-wheels drive |
| Suspension/Front |
"MacPherson(strut) type" independent suspension |
| Suspension/Rear |
Independent suspension double swing arm |
| Chassis Structure |
Whole framework and high intensity& Highly torsion-resistant |
| Tire&Brakes |
| Brakes/Front |
Hydraulic Disc |
| Brakes/Rear |
Hydraulic Disc |
| Parking Braking |
Hand Brake |
| Tire/Front |
25×8-12 |
| Tire/Rear |
25×10-12 |
| OTHER |
| Container Loading |
Qty/20’ GP: 6 units |
| Qty/40’ HQ: 12 units |
| OPTION |
| option(accessory) |
1 Winch ＄73 |
| |
2 ALLOY HUB ＄60 |
| |
3 Camouflage color ＄42 |
| |
4 Trailer(hitch) ball ＄8
| |
|
|
|
